OPT-Line ISO 7 — Cleanroom Robotic Coating Line
For Automotive Optical Parts · Hard Coat + Anti-Fog + LED UV Curing · ISO 7 Cleanroom Enclosure
|
|
CLEANLINESS
ISO 7
(ISO 14644-1)
|
CAPACITY
60 → 300 pcs / hour
|
ENCLOSURE
15 × 12 × 5 m
(configurable)
|
COMPLIANCE
CE · ATEX
on request
|
01 Product Overview
The OPT-Line ISO 7 is a robotic coating line built specifically for automotive optical parts — headlamp lenses, rear-lamp lenses, reflectors and lamp covers in PC or PMMA. It combines a six-axis painting robot, an overhead conveyor, a positive-pressure cleanroom enclosure with multi-stage filtration, an LED UV curing tunnel and an electric curing oven into one PLC-controlled production line.
Optical surfaces punish mistakes. A single 0.5-micron particle landing on wet coating becomes a visible defect after curing — and on a headlamp lens, that is a rejected part. The OPT-Line is engineered around that reality: clean air in, stable laminar airflow across the part, repeatable robot paths, and controlled curing, so every piece leaving the line meets the same finish standard.

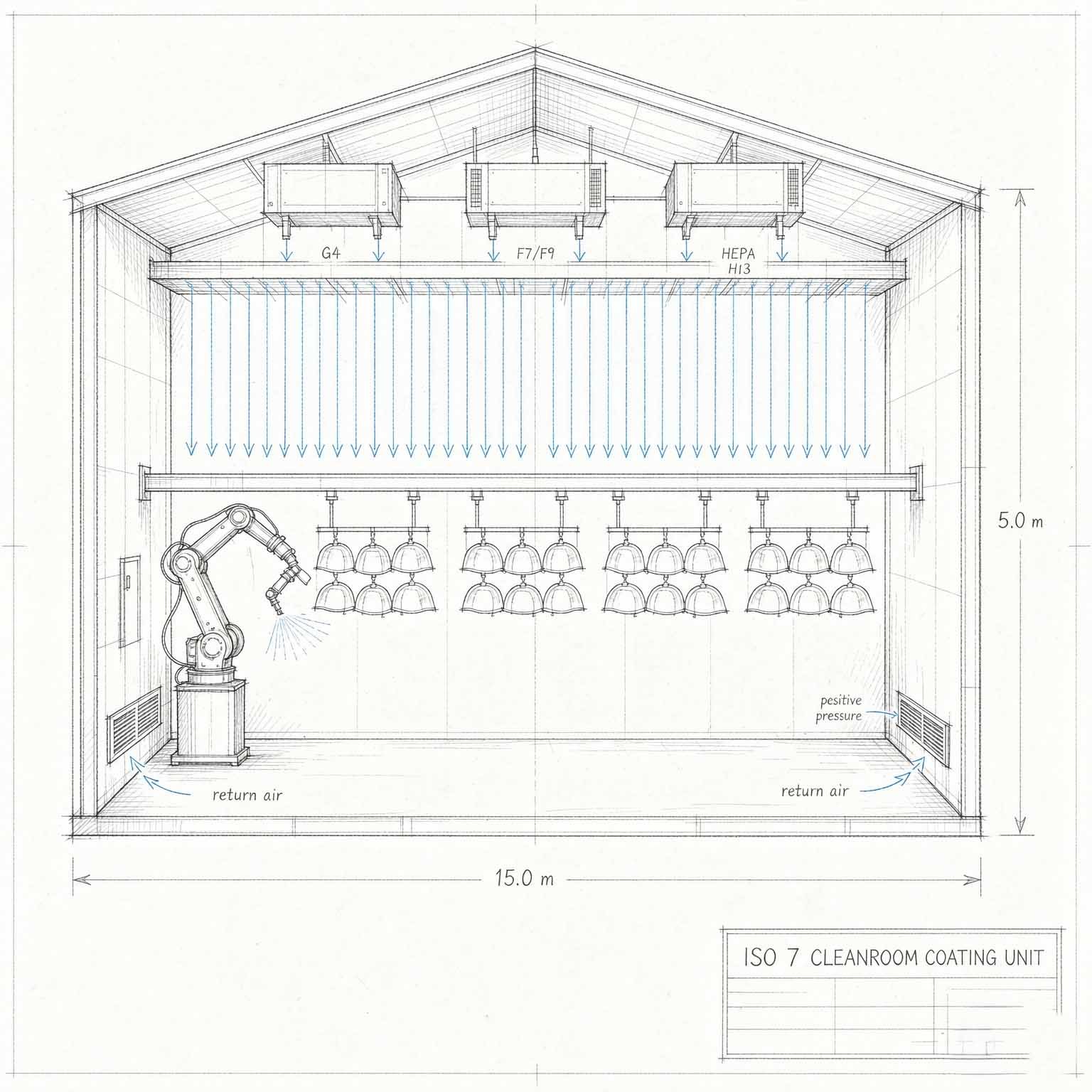

Figure 1 — Cleanroom coating unit, cutaway: HEPA-filtered laminar supply air from the ceiling plenum, overhead conveyor with hanging racks, robotic spraying inside, return air at floor level.
02 What "ISO 7" Actually Means
ISO 7 is a cleanliness class defined by the international standard ISO 14644-1. In plain terms: no more than 352,000 particles of 0.5 micron or larger per cubic metre of air. In the older naming convention it is called a “Class 10,000” cleanroom. The smaller the ISO number, the cleaner the room.
Each step down in ISO number means ten times fewer particles allowed:
|
ISO Class
|
≥0.5 µm particles / m³
|
Older name
|
Typical application
|
|
ISO 5
|
3,520
|
Class 100
|
Semiconductors, aseptic filling
|
|
ISO 6
|
35,200
|
Class 1,000
|
Precision optics, medical devices
|
|
ISO 7
|
352,000
|
Class 10,000
|
Pharmaceutical, medical, precision coating ← this line
|
|
ISO 8
|
3,520,000
|
Class 100,000
|
General industrial clean areas
|
|
ISO 9
|
35,200,000
|
—
|
Ordinary air-conditioned room
|
|
Why 0.5 micron matters
A human hair is about 50 microns thick — one hundred times larger than the particle size ISO 7 controls. These particles are invisible to the eye, yet on a wet optical coating each one becomes a visible bright spot after curing. That is why optical coating lines work to ISO 7 rather than to a general industrial standard.
|
03 The Four Conditions That Make a Room ISO 7
Fitting a filter does not make a room ISO 7. All four conditions must be met together:
|
1 · HEPA terminal filtration
Pre-filter G4 protects the downstream stages, bag filters F7/F9 remove fine particulate, and HEPA H13/H14 terminal filters in the ceiling plenum remove 99.95% or more of the remaining particles before the air reaches the part.
|
2 · High air-change rate
ISO 7 typically requires 30 to 60 air changes per hour. The constant dilution is what keeps particle count down while the line is running — a 900 m³ coating unit at 40 ACH needs roughly 36,000 m³/h of supply air.
|
|
3 · Positive pressure
The clean zone is held at a higher pressure than the surrounding area, so when a door opens, air flows outward. Dirty air can never drift in. Pressure is monitored and alarmed by the PLC.
|
4 · People and material control
Operators are the largest particle source — a walking person sheds tens of thousands of skin flakes per minute. Airlocks (SAS), tacky mats, cleanroom garments and changing rooms (Vestiaires) are not optional extras; they are part of the classification.
|
04 Process Stations
Stations are configured to the customer's coating system and part geometry. The reference configuration for PC lamp lenses is shown below.
|
#
|
Station
|
Function
|
|
1
|
Loading & fixturing
|
Lenses loaded onto racks at floor level; 16 pcs per rack as standard.
|
|
2
|
Pre-treatment / de-dusting
|
Ionised air blow-off removes particles before coating.
|
|
3
|
Robotic hard coating
|
Six-axis robot applies the UV-curable hard coat inside the filtered booth.
|
|
4
|
Flash-off
|
Controlled dwell under clean, filtered airflow before curing.
|
|
5
|
LED UV curing
|
LED UV tunnel cures the hard coat in seconds, at low substrate temperature.
|
|
6
|
Anti-fog coating
|
Robotic or manual application of the 1K anti-fog coating.
|
|
7
|
Electric curing oven
|
Electric oven with zone temperature control for thermal cure or preheating.
|
|
8
|
Cooling
|
Filtered cooling section brings parts to handling temperature.
|
|
9
|
Unloading & inspection
|
Parts exit the enclosure for unload and in-line quality check.
|
|
Robotic spraying — six-axis robot applying coating to hanging lens racks.
|
Inline curing — LED UV tunnel followed by electric curing oven.
|

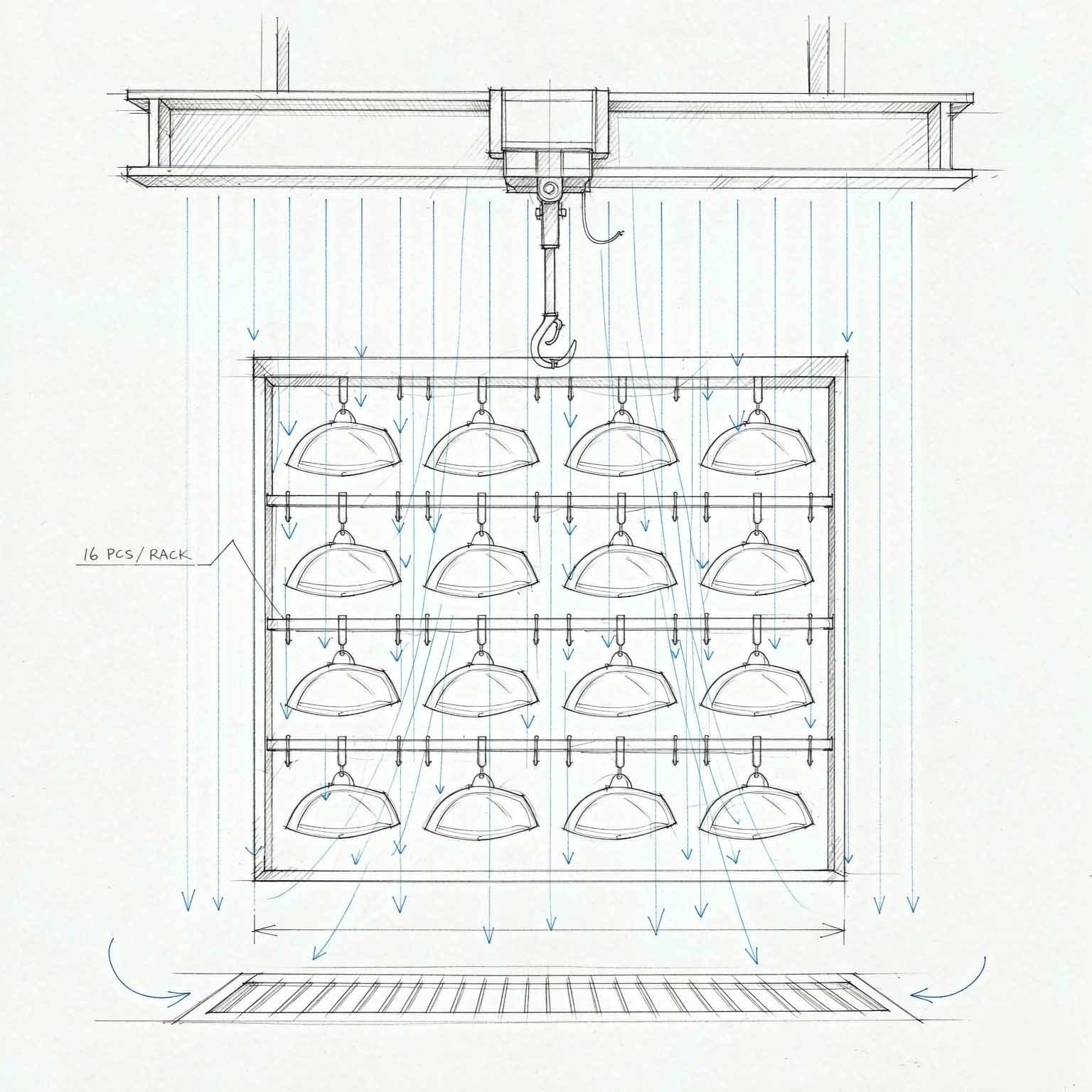

Overhead conveyor rack — 16 lenses per rack under laminar clean air.
|
05 Reference Technical Specification
Every parameter below is engineered to order.
|
Parameter
|
Specification
|
|
Workpiece
|
Automotive headlamp / rear-lamp lenses, reflectors, lamp covers
|
|
Substrate
|
PC, PMMA — jigging designed to part geometry
|
|
Rack loading
|
16 pcs per rack (modifiable)
|
|
Capacity
|
60 pcs/hour baseline, scalable to 300 pcs/hour
|
|
Cleanroom class
|
ISO 7 (ISO 14644-1) in the coating zone
|
|
Cleanroom enclosure
|
15,000 × 12,000 × 5,000 mm (L × W × H) — configurable
|
|
Filtration
|
G4 pre-filter + F7/F9 bag filter + HEPA H13/H14 terminal filtration
|
|
Air changes
|
30–60 ACH, engineered to the agreed class and room volume
|
|
Airflow pattern
|
Vertical laminar down-draft, positive pressure, floor-level return air
|
|
Painting robot
|
1–2 × six-axis robot, 120–200 kg payload class, spray package and paint supply
|
|
Conveyor
|
Overhead conveyor or floor-rail conveyor, VFD driven
|
|
UV curing
|
LED UV tunnel, sized to coating TDS and line speed
|
|
Thermal curing
|
Electric oven with zone control, ambient to 220 °C
|
|
Energy saving
|
Smart VFD control system; EcoSmart cross-flow plate heat recovery
|
|
Control
|
PLC + HMI, recipe management, pressure monitoring, alarm log
|
|
Power supply
|
380 V / 50 Hz / 3-phase (other local standards available)
|
|
Compliance
|
CE; ATEX-compliant configuration available on request (Zone 1 / Zone 2)
|
06 Why CoatTech for an ISO 7 Coating Line
|
Air handling is our core product
The air-handling unit that serves a spray booth — filtration, laminar supply, temperature and humidity control, exhaust and heat recovery — is standard equipment we manufacture, not a subcontracted extra. For a 900 m³ coating unit this is a well-proven scale for us.
|
Honest about scope
Our strength is the coating line and the air system that serves it. A plant-wide central HVAC system is a different discipline, and we will say so rather than overpromise. Where we are not the right supplier, we say it clearly.
|
|
Proven heavy-industry projects
Fully enclosed spray booths for 50-ton, 9.8 m transformer tanks in Jubail, Saudi Arabia; a 15 × 7 × 6 m retractable booth for a European steel-structure manufacturer; a four-unit custom programme in Russia.
|
Energy efficiency built in
Smart VFD energy-saving control and EcoSmart cross-flow plate heat recovery cut the fresh-air load — which is the single largest operating cost on a 100% fresh-air coating line.
|
07 Frequently Asked Questions
Q Is ISO 7 really necessary for lamp lenses?
A For optical parts, yes — it is the industry norm. A particle invisible to the eye becomes a visible defect once the coating cures, and on a lens that means a rejected part.
Q Can you supply the whole cleanroom, or only the coating unit?
A We supply the coating line and the cleanroom enclosure and air-handling system that serves it. A plant-wide central cleanroom HVAC system — central AHU battery, chiller plant and building-wide BMS — is normally handled by a specialized cleanroom HVAC contractor.
Q How much air does the 15 × 12 × 5 m unit need?
A The unit is about 900 m³. At 40 air changes per hour that is roughly 36,000 m³/h of supply air.
Q Can the line grow from 60 to 300 pcs/hour?
A Yes, but the layout must be decided up front — rack pitch, conveyor speed and curing lengths all scale with capacity, and they are expensive to change afterwards.
Q Is the line ATEX certified?
A Standard machines are CE. An ATEX-compliant configuration — Ex motors, Ex lighting, gas detection, purging and full documentation — is engineered on request for Zone 1 / Zone 2 areas.
Q Do you supply the coating material?
A No. Coating TDS is provided by you or your paint supplier, and we size the UV tunnel and oven to it.
08 Request a Proposal
Send us your part drawing or sketch, target capacity, coating system and available floor space. Our engineering team will return a process layout, a specification sheet and a budget quotation — normally within a few working days.
